The Depth Of Field effect simulates a camera that’s focusing at one depth (focal plane) in a 3D scene, blurring objects at other depths. This effect uses the depth information from the auxiliary channel of an imported file representing a 3D scene. To use the depth information that After Effects calculates for a camera layer, see Create a camera layer and change camera settings.

This effect works with 8-bpc color.

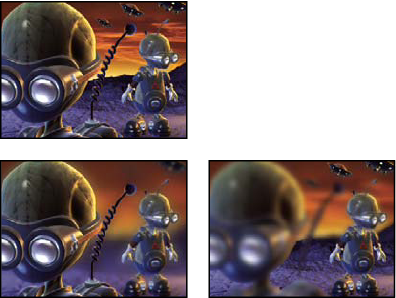

Original (top left), and with Depth Of Field applied using different Focal Plane values (bottom left and bottom right)

Focal Plane

The distance along the z axis of the focal plane from the camera.

To show the depth of an object in the Info panel, click the object in the Composition panel or Layer panel using the Selection tool while the effect is selected.

Maximum Radius

How much blur is applied to objects outside the focal plane.

Focal Plane Thickness

Determines what depths are in focus on either side of the focal plane.

Focal Bias

The higher the value, the more quickly elements drop out of focus with increasing distance from the focal plane.
