Illustrator

Apply a marker design to a line or scatter graph

  1. Create or import the column design.
  2. Use the Group Selection tool  to select the markers and the legends in the graph that you want to replace with a design. Do not select any lines.
  3. Choose Object > Graph > Marker. Select a design, and click OK.

    The design is scaled so that the backmost rectangle in the design is the same size as the default square marker on the line or scatter graph.

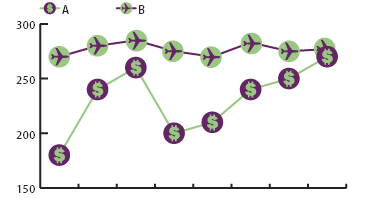

    Line graph with marker designs
